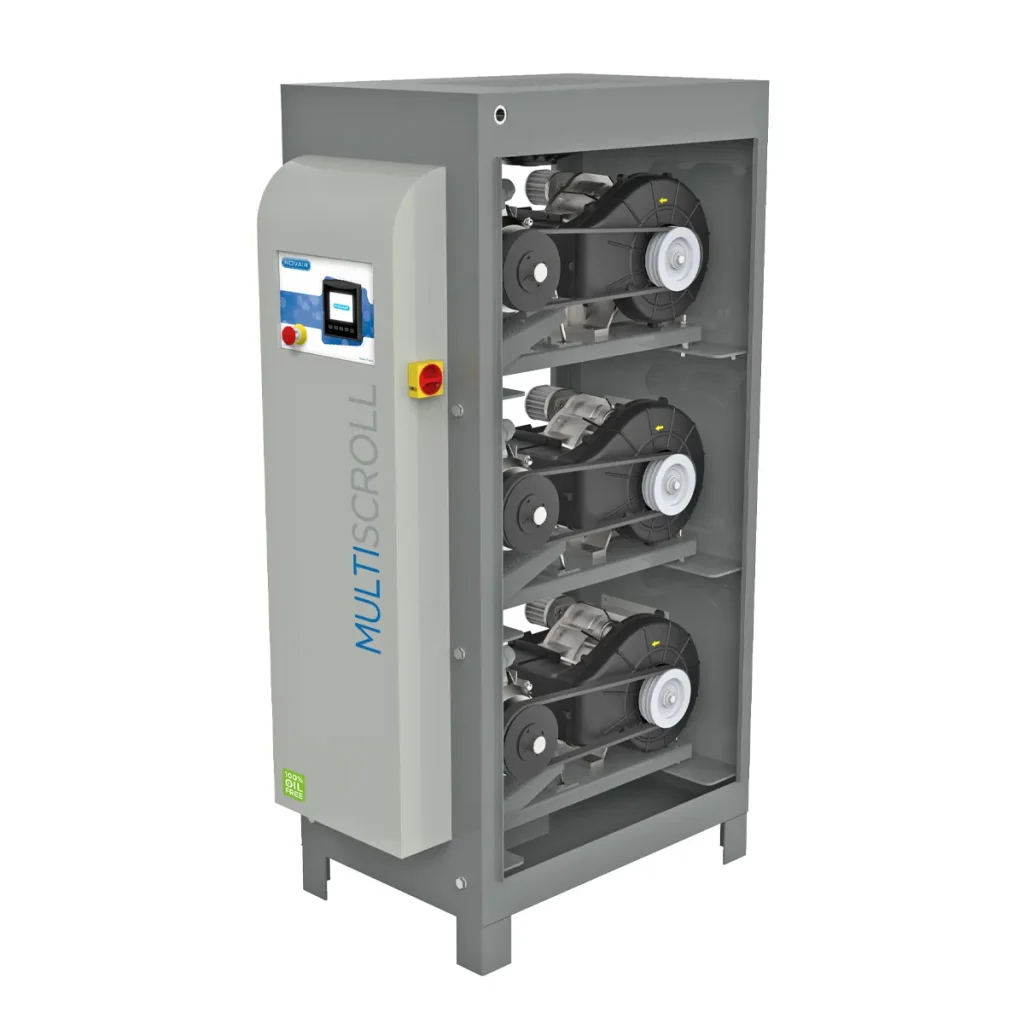

Multiscroll compressor
NOVAIR Multiscroll compressor delivers 100% oil-free medical air production, with reliable operation and reduced maintenance costs. Designed to meet the most exigent requirements of healthcare facilities, it provides flow rates of up to 153 m³/h and integrates easily into any medical gas pipeline installation.
- Oil-free production
- High reliability, continuous operation
- Simplified maintenance
Why choose Multiscroll Compressor?
Medical-grade air quality
The Multiscroll delivers pure, dry, oil-free medical air compliant with the European Pharmacopoeia and international standards, ensuring patient safety.
Reliability and performance
Its oil-free scroll technology enables continuous full-capacity operation, delivering long service life and a high level of availability.
Economical and easy to maintain
With few moving parts and an optimized design, the Multiscroll significantly reduces maintenance frequency and costs.
Advantages of the Multiscroll compressor
A complete, ready-to-use solution
Available in single, duplex or multiple configurations, the Multiscroll adapts to the needs of hospitals and clinics and can be combined with an adsorption or refrigerated air treatment system.
Oil-free technology for health
100% oil-free air compressor using scroll technology, it provides perfectly clean and reliable compressed air, meeting the strictest requirements of health facilities.
- Certified air quality
- Capacity up to 153 m³/h
- Modular installation
Multiscroll compressor in detail
Key features
The Multiscroll is an oil-free medical scroll compressor designed for the continuous production of medical air compliant with NF EN ISO 7396-1 and HTM 02-01 standards.
- Controller CPU Touch Control© screen
- Quiet and continuous operation
- Compact cabinet / mounted on a horizontal tank for small modules
- Adaptable to all medical facilities
Technical data
The Multiscroll guarantees pure, consistent medical air with performance tailored to hospital requirements.
- Flow: up to 153 m³/h
- Pressure: 8 or 10 bar (116 to 145 psi)
- Power: 7.5 to 22.5 kW (9.3 to 29.5 HP)
Multiscroll technology
Each compressor consists of at least one module with two helical scrolls performing an orbital motion. The relative movement between the first scroll—which remains stationary—and the second, moving scroll continuously draws air into the compression chamber without any contact with lubricant. The compressed air is then directed toward the center of the scroll, where it is subsequently cooled.
Are you preparing a call for tenders or a technical file?
Our team provides a complete CCTP, including:
- Detailed description of Multiscroll and options
- Performance data and electrical configurations
- Maintenance plan and regulatory compatibility
Contact us to receive the CCTP adapted to your project:
