Solutions Plug & Play
OXYFACTORY®
Produce and package your medical oxygen directly on-site
OXYFACTORY® solutions combine all the equipment required for the production, storage, and cylinder filling of medical oxygen into a single integrated system.
Available in a containerized or skid-mounted configuration, these turnkey systems are fully assembled, tested, and validated at the factory before shipment. They enable healthcare facilities to secure their medical oxygen supply while reducing their dependence on external deliveries.
- Medical oxygen production from 93% to 99.5%
- Cylinder filling up to 200 bar
- OXYPLUS® medical oxygen generators certified as CE Class IIb Medical Devices
- Save valuable indoor space with an external technical room
- Quick installation and simplified commissioning
Why choose OXYFACTORY®?
A complete oxygen system in a single unit
Each OXYFACTORY® solution includes all the equipment required to operate a standalone oxygen generation plant: a PSA medical oxygen generator, air compressors and air treatment system, oxygen storage tanks, cylinder filling ramp and filling system, automatic changeover panel, pressure regulation and connection to the hospital pipeline network, as well as an electrical cabinet and centralized control system.
The expertise of a medical device manufacturer
OXYFACTORY® solutions are based on NOVAIR OXYPLUS® Medical Oxygen Generators, certified as CE Class IIb Medical Devices.
They comply with the main international standards applicable to medical oxygen production, including ISO 7396-1, the European Pharmacopoeia – Oxygen 93 or Oxygen 98 Monographs, and HTM 02-01.
An operational installation in record time
Unlike conventional oxygen plants that require multiple on-site installation activities, OXYFACTORY® units are delivered fully preconfigured and factory tested. Once connected to the electrical supply and the hospital pipeline network, they can be commissioned within just a few hours, significantly reducing deployment time and minimizing operational disruption.
Image for illustrative purposes only
Your standalone medical oxygen production station
Continuous, certified oxygen production
With OXYFACTORY®, NOVAIR provides a complete solution for the on-site production, storage, and cylinder filling of medical oxygen.
Designed for hospitals, clinics, healthcare centres, temporary medical facilities, and remote locations, OXYFACTORY® units reduce dependence on cylinder and liquid oxygen deliveries while ensuring a continuous supply of medical oxygen.

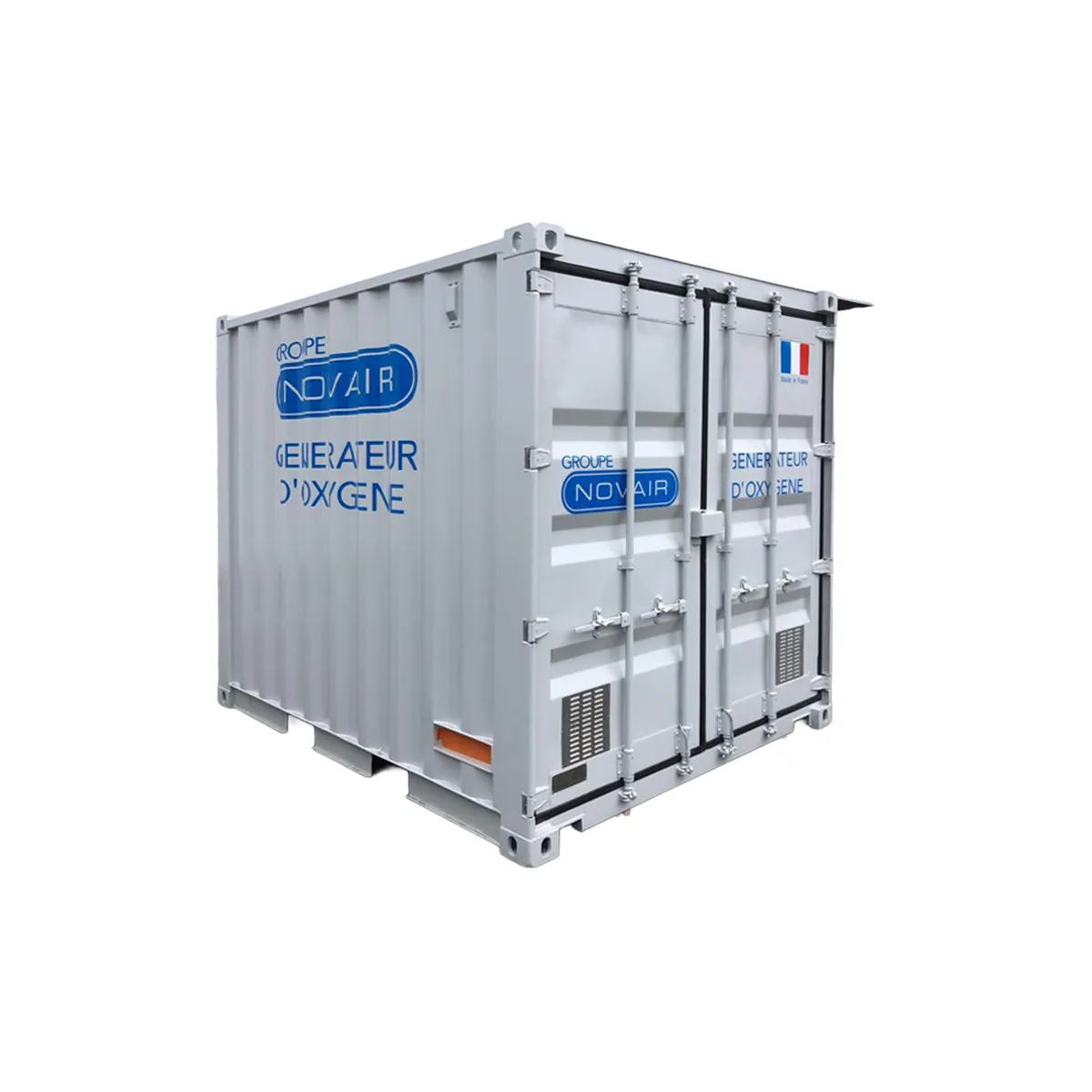

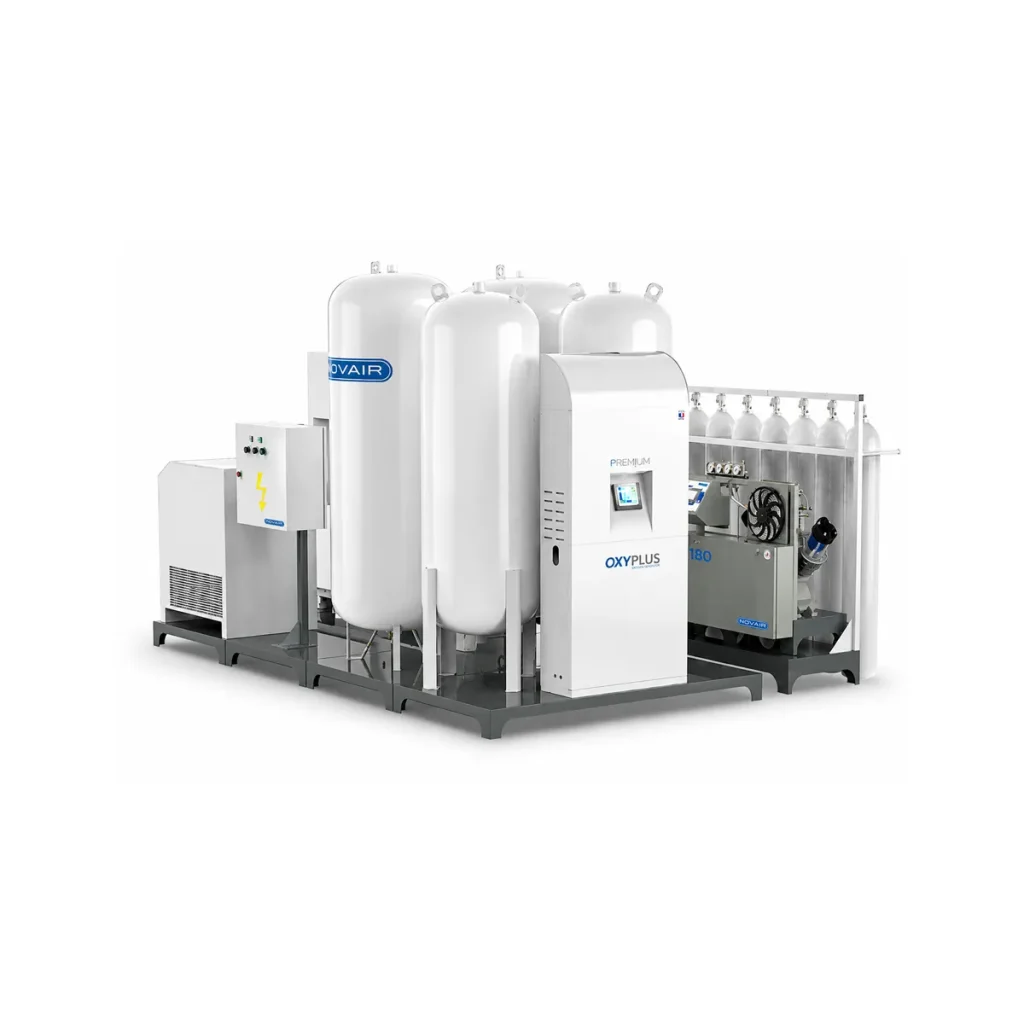

Available in containerized or skid-mounted versions, they can be tailored to the technical, climatic, and logistical requirements of each project.
OXYFACTORY® solutions in detail
Key Features
- Medical oxygen production from 93% to 99.5%
- Cylinder filling up to 200 bar
- Available as containerized or skid-mounted solutions
- Containers are available in 10-, 20-, or 40-foot sizes, depending on your needs
- Fully preassembled Plug & Play solution
- Integrated PSA Medical Oxygen Generator
- Complete air filtration and purification system
- Integrated oxygen storage, depending on configuration
- Automatic changeover panel
- Pressure regulation to the hospital pipeline network
- Centralized monitoring and control
- Modular and scalable design
Technical Specifications
CE-marked medical device—Class IIb, compliant with EN ISO 7396-1, designed to analyze multiple pollutants and parameters in real time with high accuracy.
- Oxygen purity: 95% ± 1%
- Maximum flow rate: 2.5 to 137 Nm³/h, depending on the model
- Outlet pressure: 4.5 to 6 bar
- Required air inlet pressure: > 7 bar
- Required compressed air quality: Class 1.4.1 (ISO)
- Power supply: 120/230 V – 50/60 Hz – 2 A
The Benefits of the OXYFACTORY® Container
The container is much more than an integration method—it is a complete technical infrastructure delivered ready for operation.
- Rapid Deployment: The entire station is installed, wired, and tested at the factory before delivery.
- Mobility and Relocation: The solution can be transported, moved, or redeployed as the site's needs change
- Equipment Protection: The container protects equipment from the elements, dust, corrosive environments, and weather fluctuations.
- Simplified installation: Little or no need to construct a dedicated technical building, reducing project costs and timelines.
- A solution designed for demanding environments: Ideal for remote hospitals, humanitarian projects, military facilities, temporary structures, or public health programs.
Are you preparing a request for proposals or a technical proposal?
Our team provides a comprehensive set of technical specifications, including:
- Functional Description of the OXYFACTORY® Plug & Play Solution
- Medical Oxygen Production and Cylinder Filling Station
- Integration into the medical gas distribution network and cylinder management
- Installation requirements, connections, power supply, ventilation, and placement of the container or skid
Contact us to receive the technical specifications tailored to your project:
